Reciprocating Compressor

  • High Pressure
  • Standard Pressure

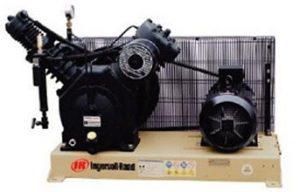

Dependable Type 308 Air Compressors Designed Specifically for High-Pressure Operation:

  • Ingersoll Rand’s Type 30 range of reciprocating air compressors has been outperforming the competition for 75 years. Our high-pressure version is no different.
  • These air-cooled, multi-stage. splash-lubricated air compressors are available from’ 3hp – to 20hp and are designed for applications requiring pressure air from 300 psig to 6,000 psig.
  • Type 30 high-pressure air compressors are simplistic in design, providing superior reliability and enhanced serviceability.
  • These compressors have extra heavy-duty components and are designed for maximum performance and minimum maintenance.
  • When performance is defined by maximum operating pressure. increased airflow. and extended duty cycles. Type-30 h6h pressure is the product of choice

Standard Scope of Supply (Standard Package) Base Plate mounted Units :

  • Heavy duty cast iron pump
  • Oil level sight glass
  • Interstage safely valves and pressure gauges
  • Discharge check valve & safety valve
  • Manual drain valves on interstage drain legs
  • Effcient TEFC Electric motor, IP54, 1.15 S.F
  • Rugged Steel baseplate
  • Enclosed wired beltgurd
  • Vee-belt drive (single piece pulley)
  • High pressure, pressure switch (Supplied loose)
  • Magnetic starter (Supplied loose)
    • Direct-on-line for 15hp & below
    •  star-delta with solenoid valve for 20 hp
  • Factory-filled XL 740HT synthetic lubricant
231XB3/35
ModelHorswpowerSpeedMax PressurePiston DisplacementFree Air DeliveryNo of CylinderCompression StageDimensionWeight
7T2XB10/3510 HP/ 7.5KW80050036.4 cfm21.6 cfm221260x950x800325
15T2XB15/3515 HP/ 11 KW90050049.5 cfm37.7 cfm321400x1030x860473
Download Brochure
For more information please call +880199933777

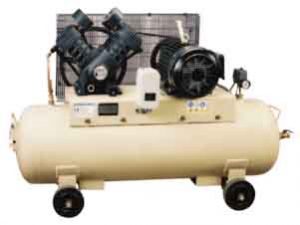

Single & Two Stage Cast Iron Industrial Reciprocating Air Compressors Standard & Premier Package:
Ingersoll Rand reciprocating air compressor has been the leader in its class, whether this is measured by reliability, efficiency, rugged, flexibility or maintainability, it has no equal. In its many configurations, the SS & T30 air compressor has been applied in every thinkable industry, both manufacturing and service which use compressed air. Designed for heavy industrial applications, the single and two stage reciprocating air compressors provide the quality and performance that exceed customer requirements. When you select an Ingersoll Rand reciprocating air compressor, you’ve selected a compressor that is
world-renowned for its quality and reliability. Engineered for high-performance, reliability and efficiency, Ingersoll Rand reciprocating compressors provide easy operation and low maintenance.

What do you get from a Standard SS Package:

  • Heavy Duty Cast Iron Pump
  • Efficient Electric Motor
  • Built-in thermal relay (Single phase)
  • 1.15 S.F, TEFC, IP54 protection, Class Finsulation (Three phase)
  • Highly Reliable Magnetic Starter
  • Direct-on-line (3hp-10hp)
  • Time Proven Parts & Components
  • Totally Enclosed Wired Beltguard
  • Approved ASME Coded Air Receiver with 3rd party Certification
Reciprocating Compressor
ModelMotorSpeedPiston DisplacementFree Air DeliveryReceiver SizeDinension Length width HeightWeight
HpKwRPMcfmI/mincfmI/minGalLitresmmKgLb
2475N7/127.55.6134026.875921.5609803031050x640x2000350773
2545XB7/127.55.676530.486224.7700--1080 x 740 x 630205452
7100D15/12-FF15.011.2103056.6160446.71294803031890 x 880 x 13255831287
For more information please call +880199933777
