DESIGN BASIC
- Material of Construction- Shell & Dish end: IS2062 Gr B
- Corrosion Allowance: 1.5 mm
- Radiography / Heat Treatment: Nil
- Code of construction: IS 2825
- Paint: IR Beige colour

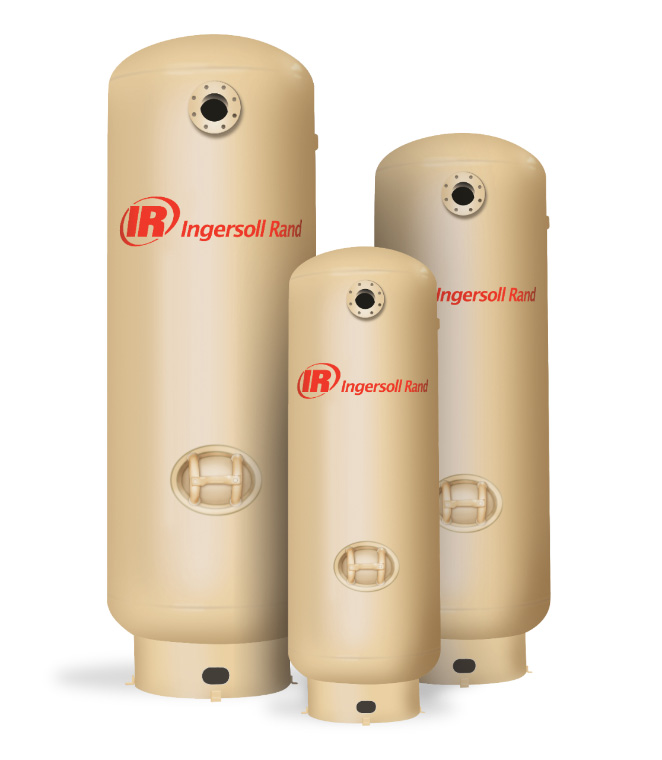

Available Air Receiver Tank Capacities:
| SL No | Description |
|---|---|
| 1 | RECEIVER 0.5 M^3 WITH ACCESSORIES |
| 2 | RECEIVER 1M^3 WITH ACCESSORIES |
| 3 | RECEIVER 1.5M^3 WITH ACCESSORIES |
| 4 | RECEIVER 2M^3 WITH ACCESSORIES |
| 5 | RECEIVER 2 .5 M^3 WITH ACCESSORIES |
| 6 | RECEIVER 3M^3 WITH ACCESSORIES |
| 7 | RECEIVER 4 M^3 WITH ACCESSORIES |
| 8 | RECEIVER 5 M^3 WITH ACCESSORIES |
| 9 | RECEIVER 8 M^3 WITH ACCESSORIES |
| 10 | RECEIVER 10 M^3 WITH ACCESSORIES |
- Available: Pressure 7.5 Kg/Cm2(g) & Pressure 12.3 Kg/Cm2(g)
- For GA of receivers refer to our std. Drg 70278031
- Standard Fittings Include:
A) Safety valve with connection – Spring loaded, Open Bonnet, Pop type.
B) Pressure gauge with connection & cock ; 4″ Dial, Drain Pipe with connection & isolation valve
C) Manual Drain Valve.
