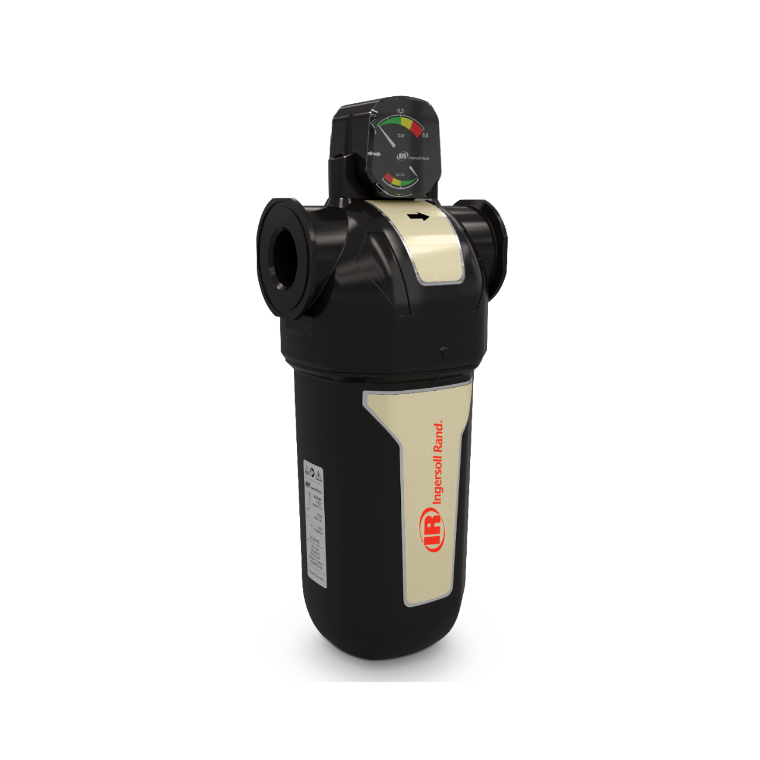

Line Filters

Technical Details:

Grade A – Activated Carbon Filtration Oil vapor and hydrocarbon odor removal, providing a maximum remaining oil content of <0.003 mg/m3 (<0.003 ppm) @ 21°C (60°F). (Precede with Grade H filter). Filter supplied with manual drain and without dual indicator.

Grade G – General Purpose Protection Particle removal down to 0.1 micron including coalesced liquid, water and oil, providing a maximum remaining oil aerosol content of 0.03 mg/m3 (0.03 ppm) @ 21°C (60°F). Filter supplied with automatic drain and dual indicator.

Grade H – High Efficiency Oil Removal Filtration Particle removal down to 0.01 micron including water and oil aerosols, providing a maximum remaining oil aerosol content of 0.01 mg/m3 (0.01 ppm) @ 21°C (60°F). (Precede with Grade G filter). Filter supplied with automatic drain and dual indicator.

Grade D – General Purpose Dust Filtration Dust particle removal down to 1 micron. Filter supplied with manual drain and dual indicator.

Operating Limitations:

• Available: Pressure 7.5 Kg/Cm2(g) & Pressure 12.3 Kg/Cm2(g)
• For GA of receivers refer to our std. Drg 70278031
• Standard Fittings Include:
  A) Safety valve with connection – Spring loaded, Open Bonnet, Pop type.
  B) Pressure gauge with connection & cock ; 4″ Dial, Drain Pipe with connection & isolation valve
  C) Manual Drain Valve.
