Established in 1970 in Italy, MARK swiftly positioned itself as an innovator in the compressed air industry. By 1974, the company began producing piston compressors, setting the stage for its expansion. In 1976, MARK made a significant breakthrough by introducing screw compressors to the Italian market, a move that revolutionized the industry.

Today, MARK stands as a global leader in manufacturing and distributing comprehensive compressed air solutions in Europe as well as Aisan countries. Operating from four strategically located manufacturing facilities across Europe, MARK leverages decades of expertise to deliver cutting-edge technologies. Their dedication to innovation is balanced by a focus on simplicity, ensuring user-friendly designs that are reliable and efficient. This philosophy is embodied in their motto: “TECHNOLOGY YOU CAN TRUST.”

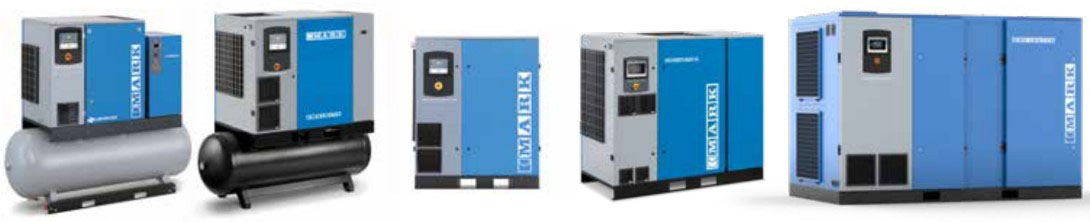

Fixed Speed – Gear Driven Technology (15 kW – 160 kW)

Gear drive systems offer superior transmission accuracy between the compressor element and motor. Opting for a heavy-duty gearbox solution delivers numerous benefits, including: increased performance with reduced energy consumption; lower maintenance costs due to the elimination of belts and couplings; zero transmission losses; no belt tensioning requirements; and quieter operation, often enhanced by a standard radial cooling fan on select models.

As the authorized business channel partner of MARK Compressors in Bangladesh, Global Cynax is proud to offer the full spectrum of MARK’s high-quality compressed air solutions. Our partnership ensures clients have direct access to MARK’s reliable products, backed by expert local support. We are dedicated to seamless integration, dependable service, and delivering the trusted technology that MARK is known for.

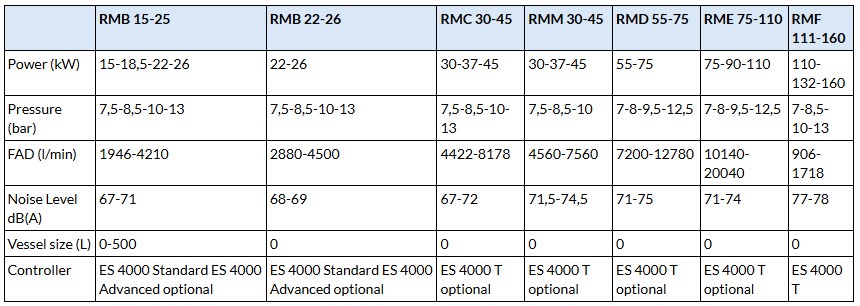

	RMB 15-25	RMB 22-26	RMC 30-45	RMM 30-45	RMD 55-75	RME 75-110	RMF 111-160
Power (kW)	15-18,5-22-26	22-26	30-37-45	30-37-45	55-75	75-90-110	110-132-160
Pressure (bar)	7,5-8,5-10-13	7,5-8,5-10-13	7,5-8,5-10-13	7,5-8,5-10	7-8-9,5-12,5	7-8-9,5-12,5	7-8,5-10-13
FAD (l/min)	1946-4210	2880-4500	4422-8178	4560-7560	7200-12780	10140-20040	906-1718
Noise Level dB(A)	67-71	68-69	67-72	71,5-74,5	71-75	71-74	77-78
Vessel size (L)	0-500	0	0	0	0	0	0
Controller	ES 4000 Standard ES 4000 Advanced optional	ES 4000 Standard ES 4000 Advanced optional	ES 4000 T optional	ES 4000 T optional	ES 4000 T optional	ES 4000 T optional	ES 4000 T

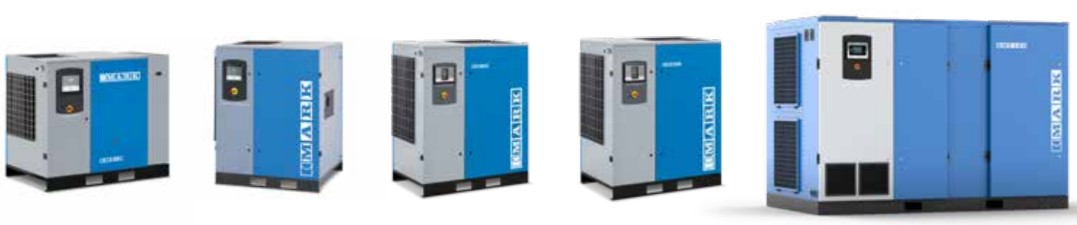

Variable Speed – Gear and Direct Driven Technology (7.5 kW – 160 kW)

Direct driven compressors achieve high energy efficiency and operate at lower temperatures due to their motor’s direct connection to the compressor crankshaft. Conversely, frequency driven compressors optimize air delivery by precisely matching output to demand. This is accomplished through a frequency inverter, which maintains consistent pressure and eliminates energy losses associated with traditional load/unload cycles. The resulting smoother air profile and adaptive operation lead to significant energy and cost savings.

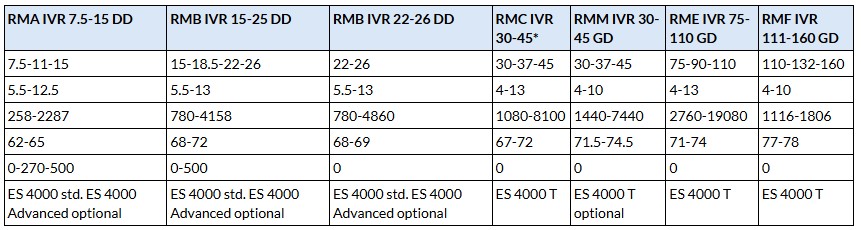

RMA IVR 7.5-15 DD	RMB IVR 15-25 DD	RMB IVR 22-26 DD	RMC IVR 30-45*	RMM IVR 30-45 GD	RME IVR 75-110 GD	RMF IVR 111-160 GD
7.5-11-15	15-18.5-22-26	22-26	30-37-45	30-37-45	75-90-110	110-132-160
5.5-12.5	5.5-13	5.5-13	4-13	4-10	4-13	4-10
258-2287	780-4158	780-4860	1080-8100	1440-7440	2760-19080	1116-1806
62-65	68-72	68-69	67-72	71.5-74.5	71-74	77-78
0-270-500	0-500	0	0	0	0	0
ES 4000 std. ES 4000 Advanced optional	ES 4000 std. ES 4000 Advanced optional	ES 4000 std. ES 4000 Advanced optional	ES 4000 T	ES 4000 T optional	ES 4000 T	ES 4000 T
