Brand: SCR
Series: APM Series
Power Rating: 22 kW
Distributor: Global Cynax (Authorized SCR Distributor)
Product Description

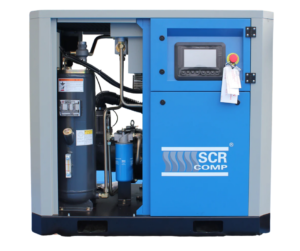

Super-Efficiency Permanent Magnet Variable Speed Compressor. The 22kW SCR APM Series Screw Air Compressor is a high-efficiency compressed air solution designed for industrial applications requiring stable pressure, low energy consumption, and continuous operation. Equipped with a super-premium IE4 equivalent permanent magnet motor and advanced variable speed drive (VSD) technology, the compressor automatically adjusts output to match real-time air demand, eliminating energy waste and reducing operating costs.
Key Features
Permanent Magnet Motor (IE4 Equivalent)
- Oil-cooled permanent magnet motor for optimal thermal performance
- IP65 protection and fully sealed motor windings
- Bearing-free design for reduced maintenance
High efficiency maintained even at low speed operation
Variable Speed Drive (VSD) Technology
- Soft start system limits startup current to ≤1.5 × FLC
- Precise air delivery based on real-time demand
- Constant pressure control with fast system response
- Intelligent PID flow regulation
- RS485 communication for system integration
High-Efficiency Screw Airend
- Optimized rotor profile designed for PM motor application
- Low RPM operation for reduced noise and vibration
- Direct 1:1 taper connection between motor and airend
- Designed service life exceeding 100,000 operating hours
Advanced Oil Separation & Cooling
- Two-stage oil separation system
- Residual oil content < 3 ppm
- Oversized oil separator with 30% design margin
- Oversized cooler supports ambient temperatures up to 46°C
Intelligent Control System
- Touch-screen PLC controller
- Real-time operating status, alarms, and maintenance alerts
- Operation history and graphical flow display
- Smart scheduling and automatic start/stop
- Optional remote monitoring
Technical Specifications – 22kW APM Series
| Parameter | Specification |
| Motor Power | 22 kW |
| Motor Type | Permanent Magnet (IE4 Equivalent) |
| Drive Type | Variable Speed Drive (VSD) |
| Working Pressure | 7 / 8 / 10 / 12.5 bar |
| Cooling Method | Air-cooled, oversized cooling system |
| Oil Content | < 3 ppm |
| Voltage | 380V / 50Hz / 3-Phase |
| Load Range | Recommended 60% – 100% |
| Control Interface | Touch PLC, RS485 |
| Ambient Temp. | Up to 46°C |
Applications
- Garments
- Food Industries
- Manufacturing plants
- CNC machining & metal processing
- Automotive workshops
- Packaging industries
- Electronics and precision industries
- And many more
Benefits
- Significant energy savings compared to fixed-speed compressors
- Stable air pressure and improved production efficiency
- Lower maintenance and operating costs
- Long service life and high reliability
- Compact design for easy installation
Why Buy from Global Cynax
- Authorized distributor of SCR Screw Air Compressors
- Genuine products with verified specifications
- Professional compressor selection and system sizing
- Installation, commissioning, and after-sales support
- Reliable spare parts availability
Strong After-Sales Support by Global Cynax (Authorized Distributor)
As the authorized SCR compressor distributor in Bangladesh, Global Cynax provides unmatched after-sales support:
- 17-member trained service team
- Dedicated service vehicles
- Fast spare parts supply
- Preventive & emergency breakdown service
- AMC (Annual Maintenance Contract) available
- Service teams in Dhaka & Chattogram
- Installation, commissioning & operator training
➡️ Ensuring minimum downtime and long-term peace of mind.
