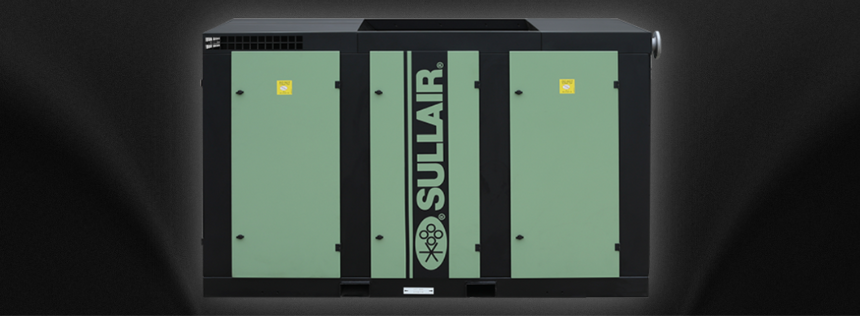

LS132-160 Series Stationary Sullair Oil Flooded Screw Air Compressor

• 0℃- 46℃ ambient temperature design
• 5-year warranty for air end（original spare parts shall be used and Sullair maintenance plan shall be followed)
• Inlet valve with inlet modulation.
• Elastic coupling + gear drive mode
• Low noise and high efficiency axial fan (air-cooled model)
• Stainless steel heat exchange tube water cooler (water-cooled model)
• 8,000 hours Sullube lubricant
• Sullair customized 8,000 hours two stage oil separator
• Equipped with standard “Sullair Star” non-touch screen intelligent controller
• Power frequency motor: Standard IP55 IE3 motor, F grade insulation B grade temperature rise
• Zero loss floating ball type separator

132-160 kW

7.5-13 bar

4.9-28.8 m3/min

Electronic spiral valve flow adjustment equipment (with 10’ STS touch screen controller)

Hitachi brand inverter + IP55 IE3 VSD motor

Ultra-efficient IE4 motor

24KT maintenance-free lubricant +10 years warranty of air end

Build-in energy recovery system

Motor RTD and space heater

Other brand inverter, motor

Other power supplies

etc.
